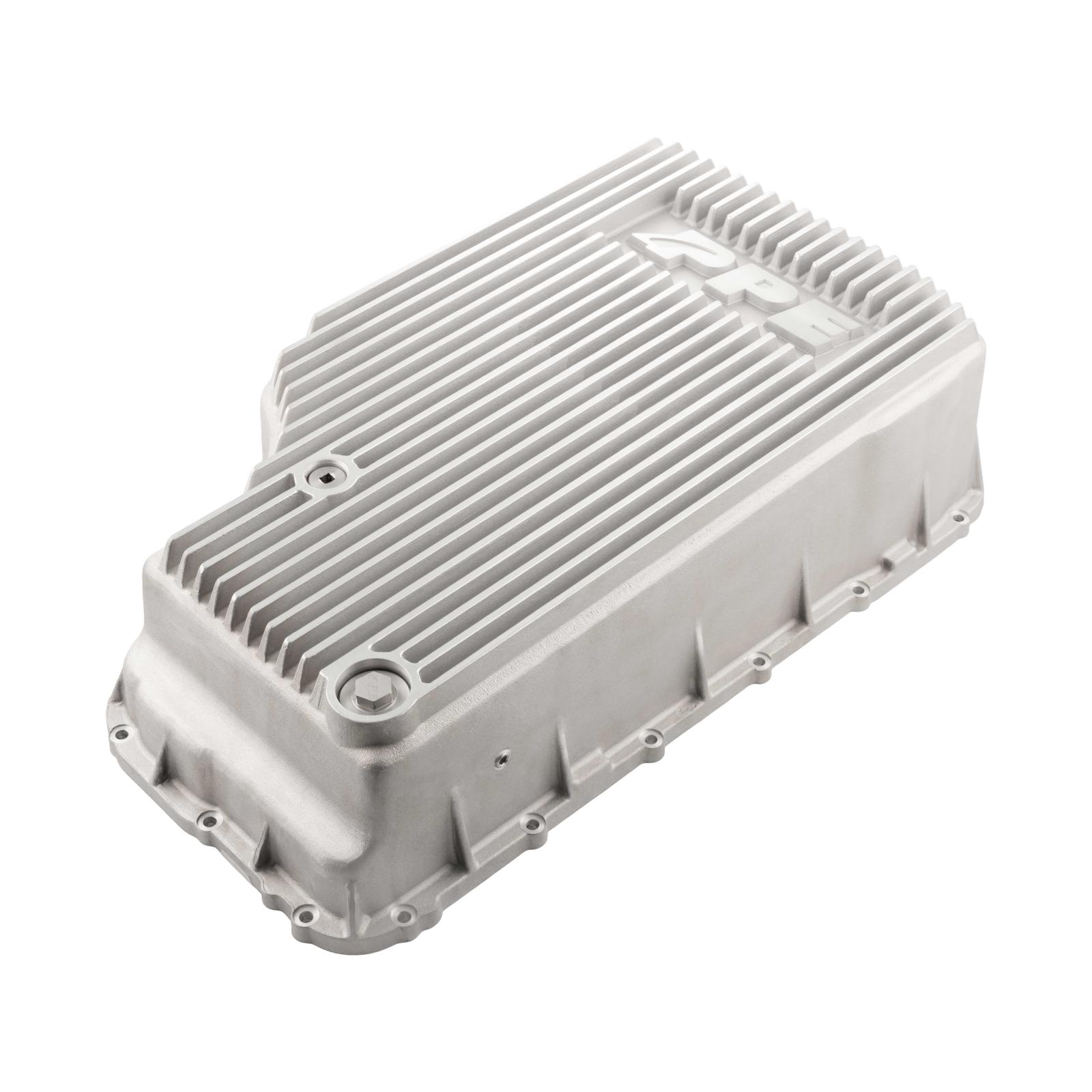

Elevate Your Ford 6.7L Power Stroke Performance with the PPE 10R140 Heavy-Duty Cast Aluminum Deep Transmission Pan. The 2020 and newer Ford Super Duty Power Stroke delivers an impressive 1050 lb-ft of torque, and up to more than 43,000 pounds of GCVR. With such increased torque and duty comes higher transmission load and heat. That's where the PPE Heavy-Duty Cast Aluminum Pan steps in, offering an additional eight quarts of fluid capacity to keep your transmission running smoothly and efficiently.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE Transmission Pan offers superior resistance to impact and warping compared to the factory plastic pan. Its robust construction ensures long-lasting protection and performance. The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure.

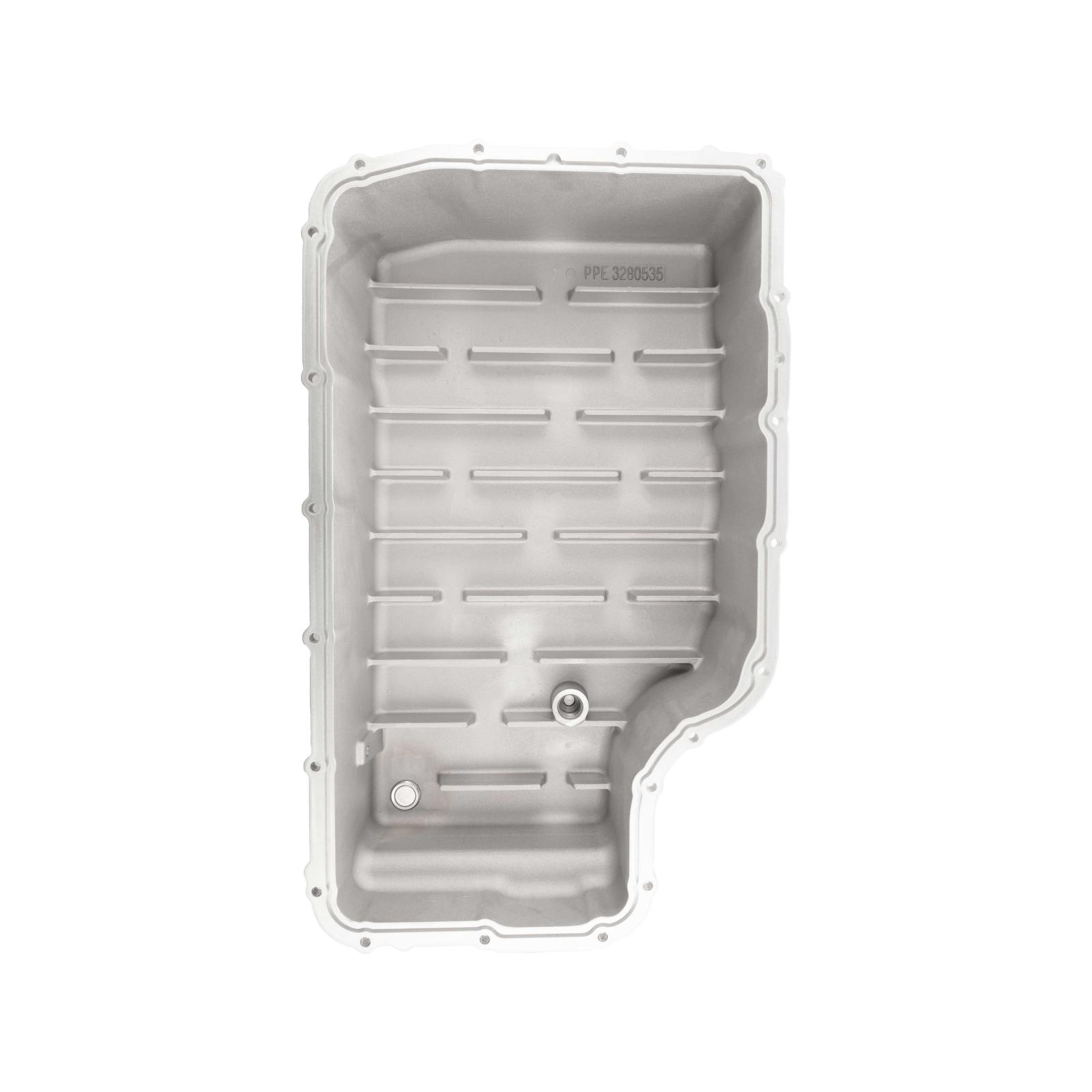

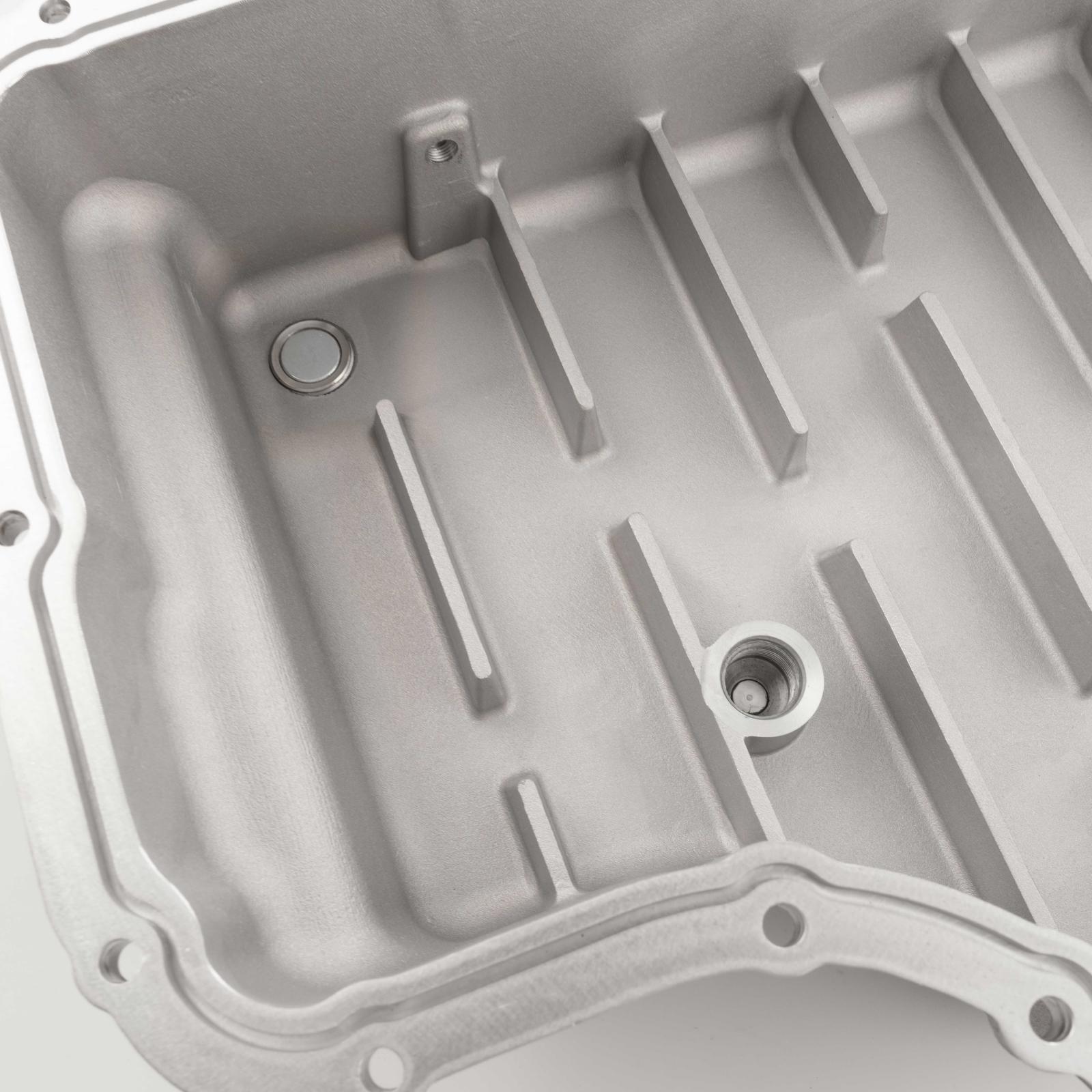

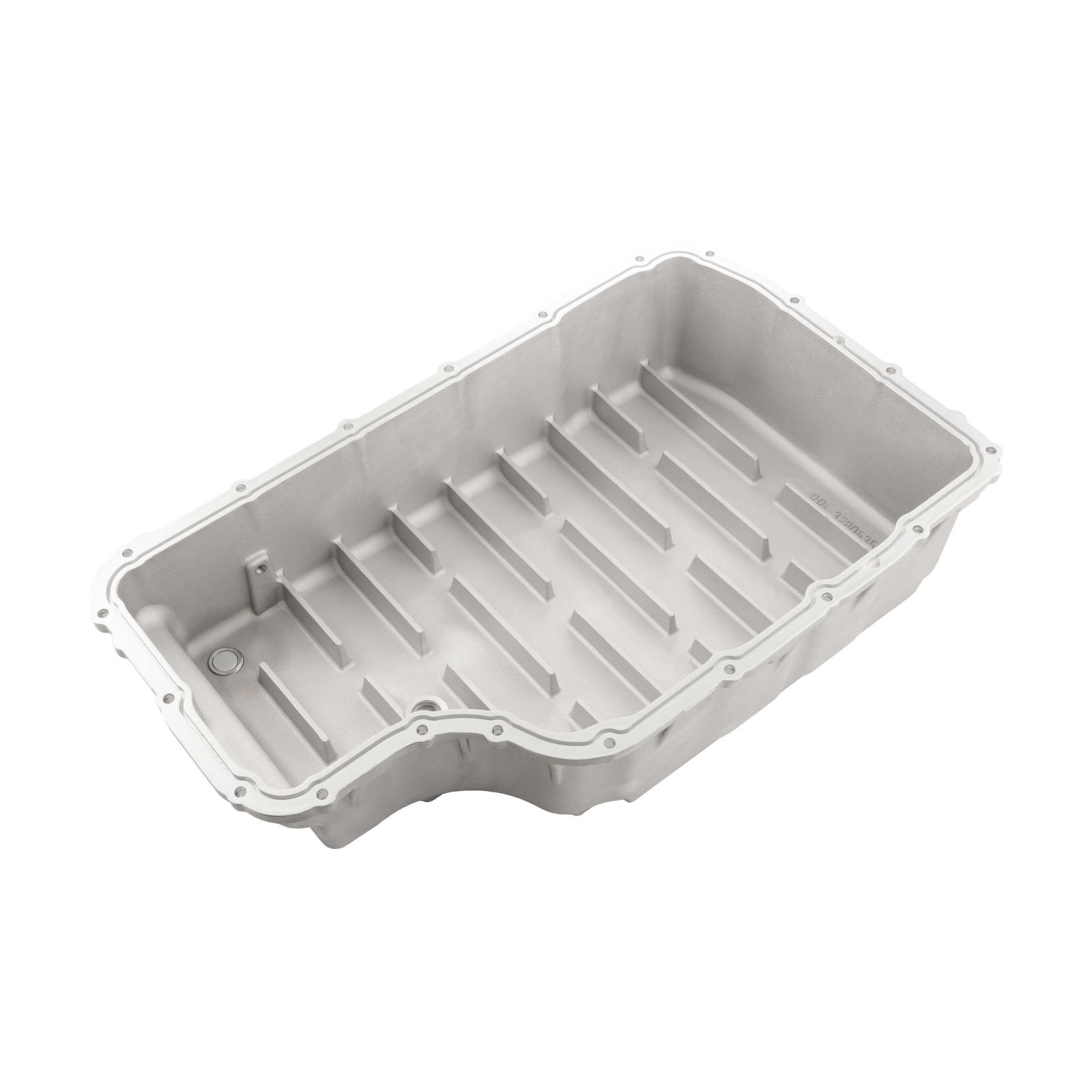

The built-in baffles at the bottom of the pan increase the contact area between the fluid and the pan's cast surface, enhancing its heat transfer capabilities. These baffles also minimize fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. The CNC-machined gasket groove guarantees an OEM fitment for the rubber gasket, while a non-reusable flat gasket is also included for quick and easy sealing.

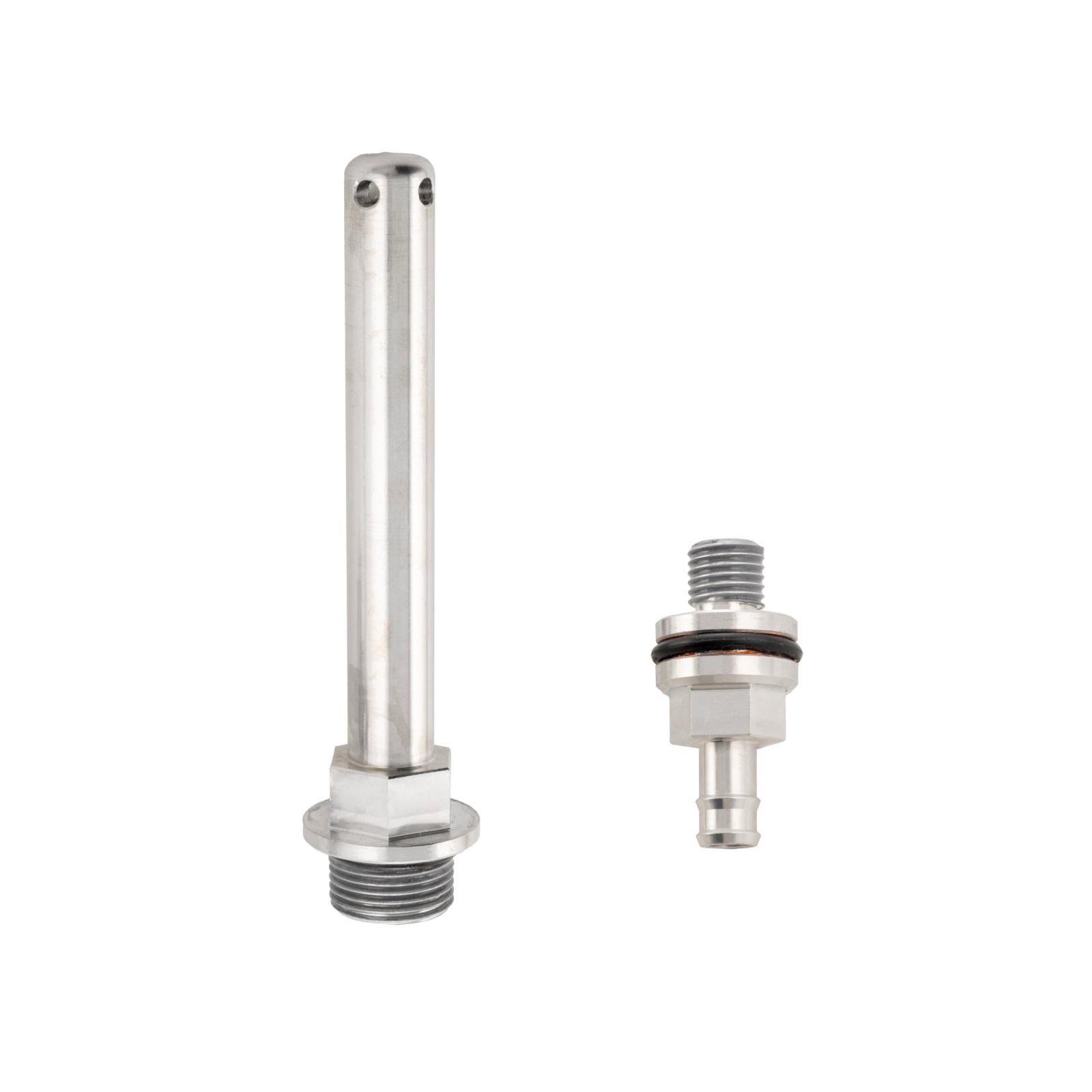

The PPE Transmission Pan includes a fluid level check standpipe and a fluid fill adapter. With just a fluid dispenser and a 3/8 inch hose, transmission fluid services can be easily managed. The billet stainless steel drain plug is equipped with a powerful neodymium magnet that captures ferrous particles, providing additional protection for your transmission.

Keep your Power Stroke's 10R140 transmission running longer, healthier, and cooler with PPE.
Features:

• 20-25 Ford Super Duty Diesel 10R140 Heavy-Duty Cast Aluminum Deep Transmission Pan-Raw
• Robust A356.0-T6 cast aluminum alloy
• 8 quarts additional fluid capacity
• External fins improve heat dissipation, lower transmission fluid temps, and increase strength
• Internal baffles increase heat dissipation and reduce fluid sloshing
• Neodymium magnet equipped, 304 stainless steel drain plug with Viton O-ring
• Fluid fill adapter and plug included
• Fluid level check standpipe included
• Compatible with OEM gasket and filter
