This kit will allow you and your engine to breathe easy. Featuring a mandrel-bent 4.5-inch intake tube for massive airflow gains, with HSP's signature heat shield Box eliminating unwanted hot air entering the cold air intake. For every 1-degree increase in intake air temperature will result in a 3hp loss. This kit also features HSP's high flow turbo mouthpiece.

This turbo mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator Box, eliminating unwanted engine oil gumming up the turbo and intake system (PCV re-route sold separately see 003-1-HSP). Also included is our 3-inch mandrel bent hot side and cold side tubes with our easy to install two-piece Y-bridge with race-proven 5 layer silicone boots so you can be ensured a great fit that won't let you down.

The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak.

HSP's solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places. Ours bolted together two-piece Y-bridge will make installation a breeze and ensure a leak-free seal that won't leave you on the side of the road. We have also included one of our 2-inch passenger sides up pipes featuring .120 inch tubing and the best bellow on the market. The factory up-pipe is prone to failure at the riser caused by excessive heat and pressure.

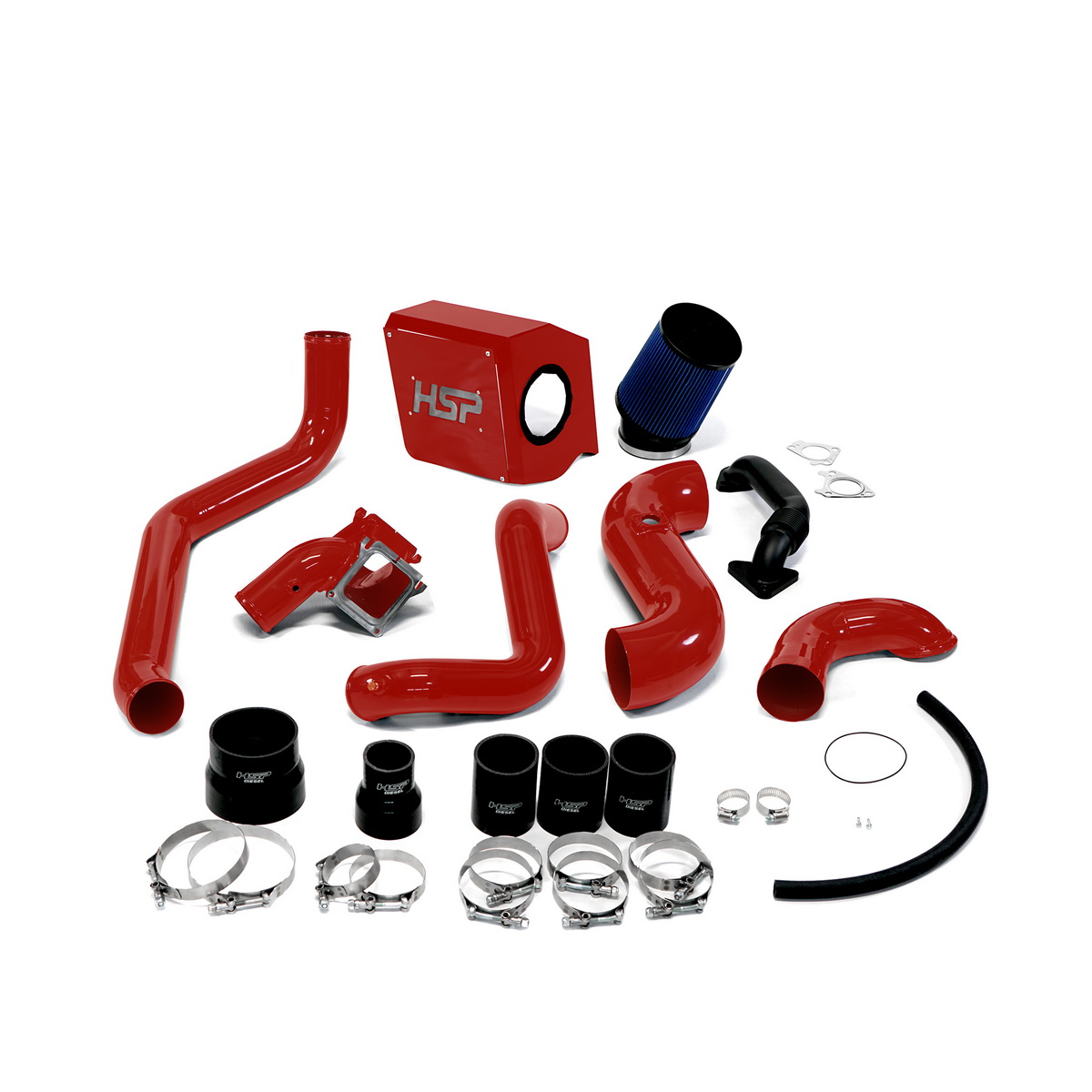

Included Components:

• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-Bolt Clamp
• 3x 3 inch x 4 inch Straight Boots
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8 inch Worm Gear Clamps
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-Point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch button head screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Up-pipe Gasket (Turbo side)
• 1x Up-pipe Gasket (Manifold Side)
• 16 inch of Trim Seal
• 2 Feet of 5/8 inch Heater Hose

Compatible with:

LBZ: 06-07 VIN Code 2 or D
How do People Know Vin Code? Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
