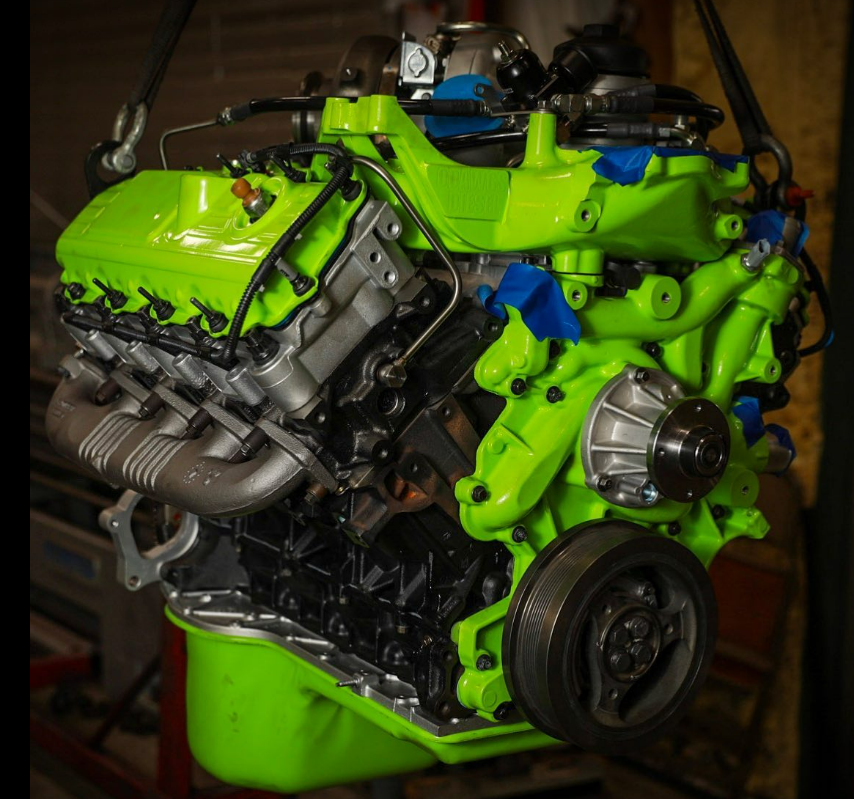

6.0L Powerstroke Full Running Workhorse Engine 2003-2010 - Powerstroke Ford Diesel Engine Heads Engine Manufacturer: CHOATE Engineering Performance. CHOATE Part Number: CEP60FW18MM, CEP60FW20MM Fitment : Fits 2003-2010 - Powerstroke Ford Diesel Engine Equipped Vehicles Full Running Engines will come complete with:

• Injectors
• Oil Rails
• Valve covers
• ICP sensor
• High Pressure Oil Pump
• IPR Valve
• Intake Manifold
• Exhaust Manifold
• Front Cover
• Low Pressure Oil Pump
• Water Pump
• Turbocharger
• Oil Cooler
• Filter Housing
• Oil Filter
• Oil Cap
• Turbo Pedestal
• Up Pipes
• Oil Temp Sensor
• Oil Pressure Sensor
• Coolant Temp Sensor
• Oil Pressure Regulator
• Valve Cover Gaskets

This 6.0L Long Block Workhorse Full Running Includes:

• Coated, Flycut, and Delipped pistons
• O-ring heads
• Chromoly Pushrods
• Stage 2 Camshaft
• Our Built-in-house Heads-Magnuflux and pressure test heads
• Reconditoned Valves
• New Induction Hardened Seats
• All New Valve Guides, Install New Valve Seals
• Test Spring Tension
• New Freeze plugs
• New Injector Cups.
• Head Studs
• Full CNC blue print machining, (bore, deck, hone and line honed). The Cylinder bores are blue print bored to a true 90 degrees from the crankshaft center line, prior to being diamond honed to within .0002 inch for precise piston to cylinder bore clearances.
• The main housing is honed to precisely align the crankshaft in the engine block. We bore the block back to the crankshaft center line and hone the block for the proper piston to wall clearance. The piston diameter is measured to the nearest .0001 inch matched to cylinder bores.
• The Cylinder block for this 6.0L Powerstroke is surfaced to a finish of 30 Ra or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface. This is mandatory for proper sealing of a MLS Gasket.
• Connecting Rods are Blueprint bored to proper center to center specs and new bushings are installed.
• New Harmonic Damper
• Billet Flexplate made in house by Choate Engineering
• Balanced and Matched Rotational Assembly

(All Manual Transmission customers are encouraged to send in their pressure plate and flywheel for proper balancing. We highly suggest using this time to install a new clutch. Get with our team to discuss all options available for your vehicle. We can save you money on some of your favorite brands!)

• New upgraded Pistons
• New Piston Rings
• New Pin Retainers
• weight matched prior to crank balancing
• New OE Lifters, Lifter Guides, OE Crank Flange Bolts, updated 9.800 OE Pushrods
• Crankshaft - Balanced with the Rotational assembly checked for run-out inspected for fatigue. Crankshaft is Polished and ground to .0005 concentricity or less
• Camshaft - Polished and Inspected
• New Rod, Main and Cam Bearings
• Install Rear Main Seal
• Install New Bed Seals
• Install New Rear Cover Gasket
• Install Upper and Lower Oil Pan Gaskets
• Install Pickup Tube O-ring
• Rear Cover Installed

CHOATE Engineering Performance Crate Engine Features: 600 HP rated. Designed with the working man in mind. The perfect platform for those who do heavy hauling regularly. Fully balanced.
