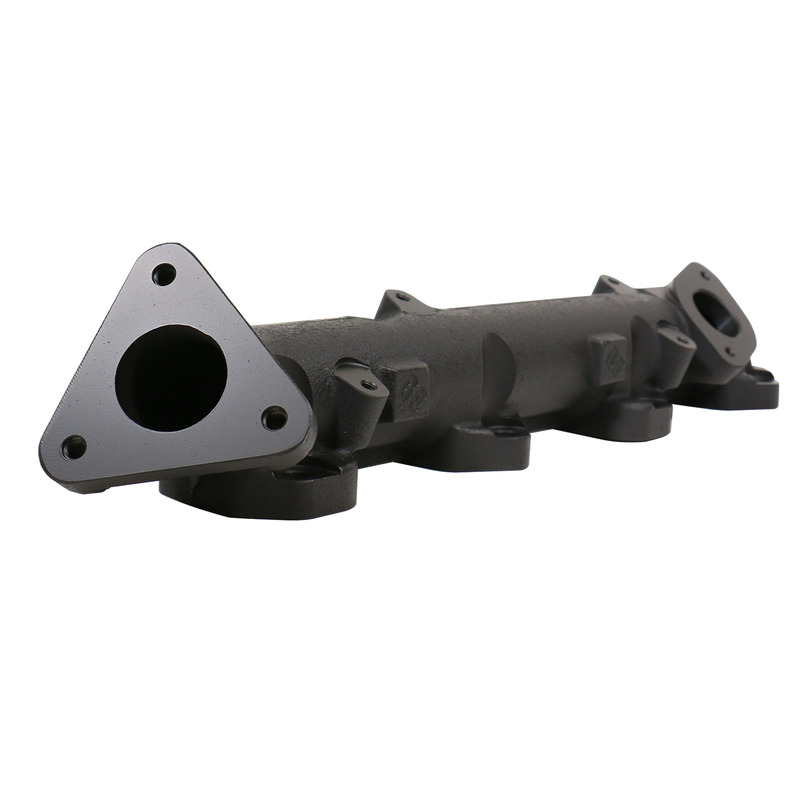

BD focused on solving one of the Ford 6.7L common failures, the exhaust Manifolds. Crafted with a heavy duty 0.275 inch thick-walled Hi-Silicon ductile casting, this makes these Manifolds 75 percent thicker to combat cracking due to high exhaust temperatures.

Thermal durability has been improved with longer exhaust studs and spacers plus thicker, more durable machined bolting flanges.

Fully EGR compatible, BD's exhaust Manifold set is the perfect replacement for reliability and peace of mind.

Install Time:

• 9 Hours

Warranty:

Parts

• 36-Months
• 75,000 Miles

Note:
CARB EO No. D-553-17
Replaces OEM Part #DC3Z9430A (Right Side)
SEMA Certification No. SC-BDD01-0050
Trucks using the MPD budget SXE turbo kit must use part number 1043006 with an OEM passenger side Manifold

Emissions:

This product is covered under CARB EO and is legal for sale and use in all 50 states. (EMS:1)

Features:

• 50 State Legal
• Average flow increase of 9.3 percent (OEM avg 173cfm/port BD avg 189cfm/port)
• Passenger Side
• High-silicon ductile cast iron

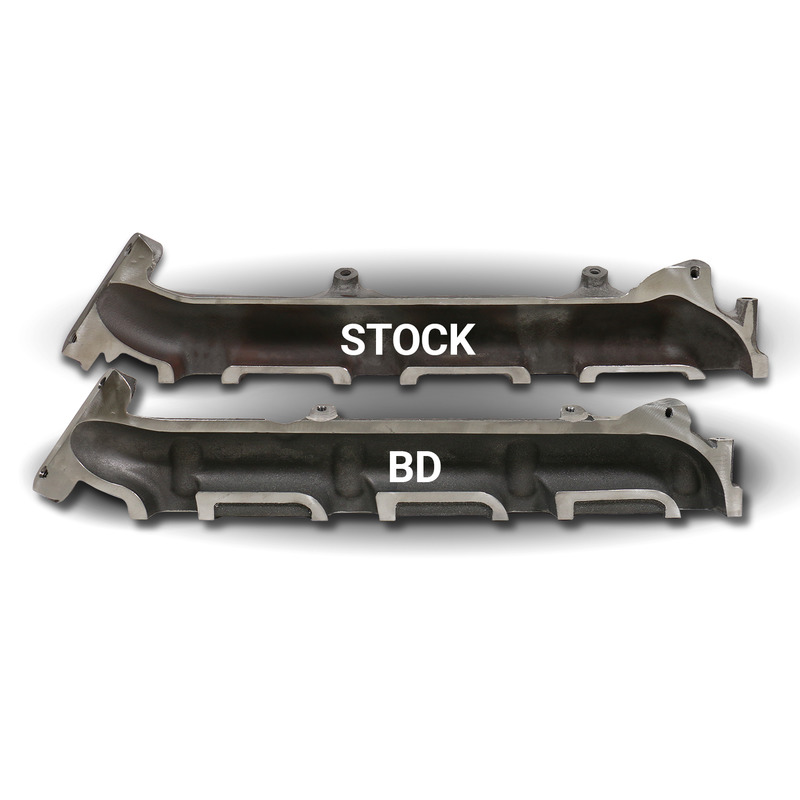

• 75 percent thicker walls retain heat and prevents warping
• Machined thicker bolting flange

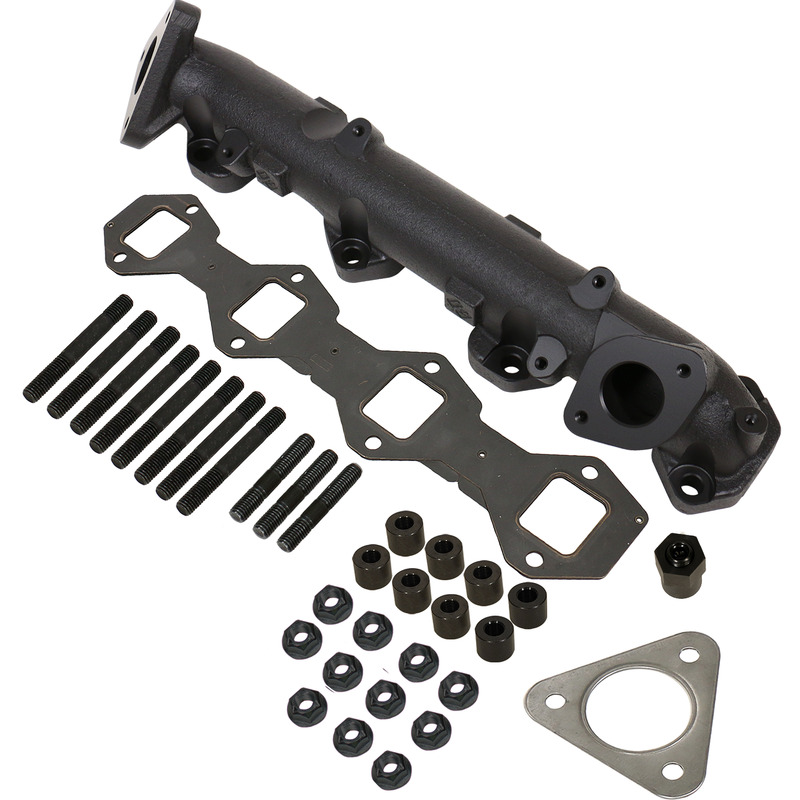

• Includes the longest stud and spacer kit that fits across all 8-cylinders
• Longer exhaust studs improve thermal durability
• Thick spacers are black oxide coated
• Designed using computation fluid dynamics
• High temperature POR 15 black coated
• Gaskets included: exhaust Manifold, cross over tube, EGR port
• Fully EGR compatible
