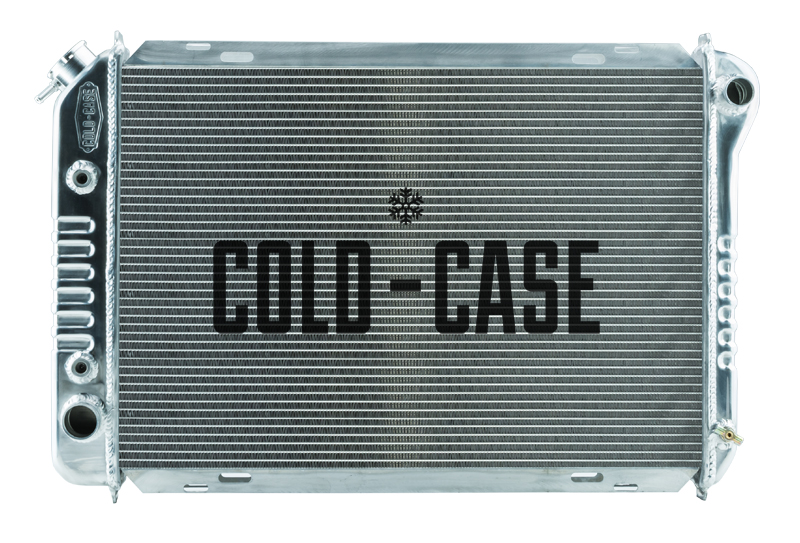

1987-1993 Ford Mustang Aluminum Performance Radiator. AT Cars. This radiators has 2 rows of 1.25 inch tubes. The factory fan and shroud combo will not work with this radiator. Use this radiator if needing extra cooling or if you plan on using electric fans.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 87-93 Mustang
• Old number RPE570A.

Radiator Specs

• Core Height 16.85 inch
• Core Width 24.5 inch
• Overall Height 19.7 inch
• Overall Width 30.175 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
