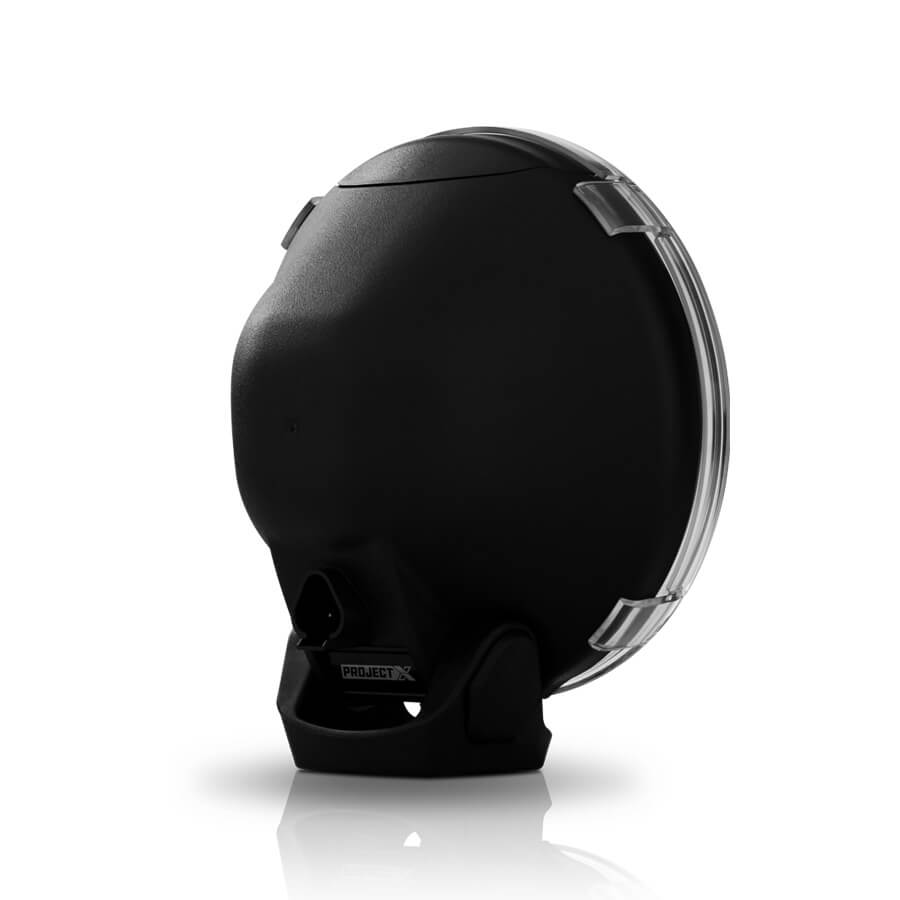

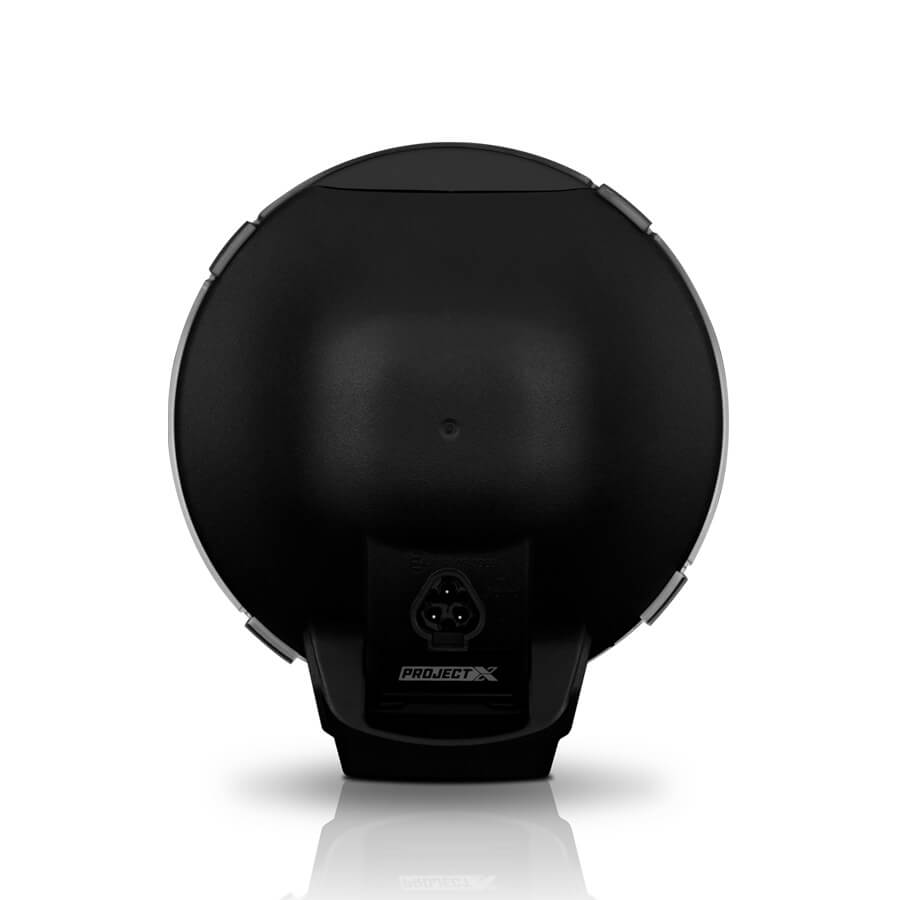

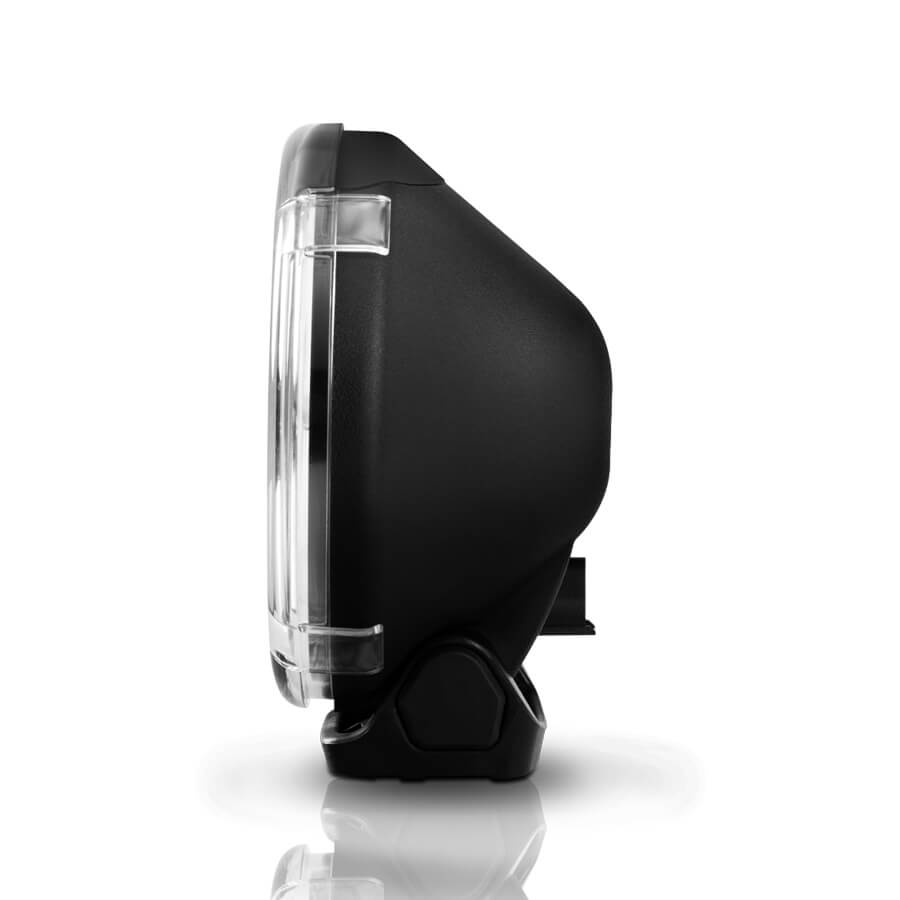

Connect with the Wild with the PROJECT X - Series One Free Form LED auxiliary lights. The Series One utilizes enhanced free form optics to capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most.
Enhanced Free From Optic Drive Technology - Enhanced free form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most.
Powered by CREE The very latest in Cree XHP50.2 L.E.D chip sets produce an extremely efficient yet powerful white light output (5000 degree K) and 3,800 raw lumens (1,663 effective) per light.
Superior Optics - The proof is in the data - the Series One's unique design creates a superior optic in a lightweight package that will perform in any condition.
LED Front Position LIght Pipe- Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.
Customizable Appearance - Customize the look of your Series One FF.70s with your choice of 2 glare shield caps in Black or PROJECT X Green

Power

• Input Voltage: 9-33V
• LED Power: 30W
• Current Draw at 12V: 3A
• Operating Temp: -40 degree F to 149 degree F
• Heat Management: Active Thermal Management System (ATMS)
• Protection: Reverse Polarity, Protection
• EMC: ECE R10

LEDs - LED Type: 15W XHP50.2, Cree LEDs

Light Pattern: Flood

Lumens

• Color Temp: 5000 degree K
• Color Rendering Index: 70
• Raw Lumens: 3,800
• Effective Lumens: 1,663
• Beam Length (1 lamp): 1 lux at 1443 Feet
• Beam Length (2 lamps): 1 lux at 2034 Feet
• Beam Width (1 lamp): 1 lux at 147 Feet
• Beam Width (2 lamps): 1 lux at 206 Feet

Construction

• Housing: Fiber Reinforced Polymer
• Lens: Hard coated Polycarbonate
• Hardware: Stainless Steel
• IP Rating: IP67
• Weight: 2.42 lbs

Details:

• Beam Length (1 lamp): 1 lux at 1443 Feet
• Beam Length (2 lamps) : 1 lux at 2034 Feet
• Beam Width (1 lamp): 1 lux at 147 Feet
• Beam Width (2 lamps) : 1 lux at 206 Feet
• Bezel Color: Black and PROJECT X Green
• Bulb Base Type: Integrated LEDs
• Bulb Color: White Bulb
• Quantity: 2 Bulb
• Technology: LED
• Bulb Type: 15W XHP50.2, Cree LEDs
• Color Rendering Index: 70
• Connector Gender: Male
• Connector Quantity: 1
• Material: Fiber Reinforced Polymer
• Effective Lumens: 1663
• EMC: ECE R10
• Hardware Included: Yes
• Hardware Material: Stainless Steel
• Heat Management: Active
• Thermal Management System Height: 7.7 IN.
• Housing Color: Black
• Housing Finish: Matte
• Housing Material: Fiber Reinforced Polymer
• Input Voltage Range: 9 - 33V DC
• IP Rating: IP67
• Lamp Current Draw at 12V: 3.32 Amps
• Lens Color: Clear
• Lens Material: Hard coated Polycarbonate
• Mounting Hole Quantity: 2
• Positional Light Current Draw at 12V: 0.13 Amps Protection: Reverse Polarity Protection
• Terminal Gender: Female
• Terminal Quantity: 1
• Terminal Type: Deutsch DT 3-pin
• Total Current Draw at 12V: 3.47
• Amps Voltage: 12 Wattage: 30 Wattage
• Draw at 12V DC: Driving Light - 39 Watts, Position - 1.8 Watts
• Wire Quantity: 3
• Wiring Harness Included: Y
• Weight: 2.42 LBS
• Width: 4.1 IN.
