Are you a looking to rebuild your own Tranmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance Tranmissions for the seasoned builder to complete the job.

All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own Tranmission rebuilds.

Warranty:

Parts

• 12-Months
• 12,000 Miles

Note:
Recommend Option - BD Heavy Duty Tranmission Pan
Tuner or module is required to increase Tranmission pump pressures

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

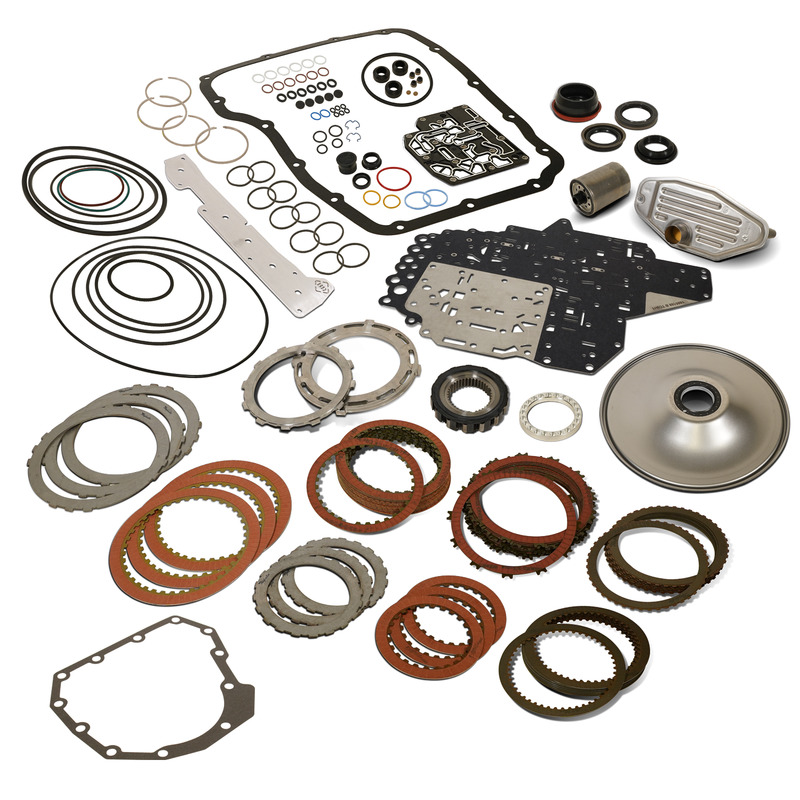

Features:

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty accumulator plate to prevent accumulator blowout
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Upgraded One Way Clutch/Sprag
• Over Drive clutches 17 percent increase and Under Drive clutches 20 percent increase
• Qty 3: 2C Clutch Friction
• Qty 3: 2C Clutch Steel
• Qty 3: 4C Clutch Friction
• Qty 3: 4C Clutch Steel
• Qty 15: OD Clutch Friction
• Qty 15: OD Clutch Steel
• Qty 7: Reverse Clutch Friction
• Qty 7: Reverse Clutch Steel
• Filter - Pan
• Filter - Spin On
• Pump Cover
• Billet OD/Reverse Selector Plate
• Billet OD/UD Reaction Plate
• Stiffer Billet Intermediate Reaction Plate
• Stiffer Billet Overdrive/Rev Reaction Plate
• Billet 4C Spring Retaining Ring
• Gasket - Oil Pan
• Gasket - Solenoid Pack
• Gasket Kit - Oil Cooler
• Seal - Solenoid Pack Connector
• Seal - 4wd Output Shaft
• Seal - 2wd Output Shaft
• Seal - Input Shaft
• Seal Kit - 2-4C
• Seal Kit - Input Drum
• Seal Kit - Solenoid Pack
• Seal Kit - Internal
• Seal Kit - External
• O-Ring - pump Cover
