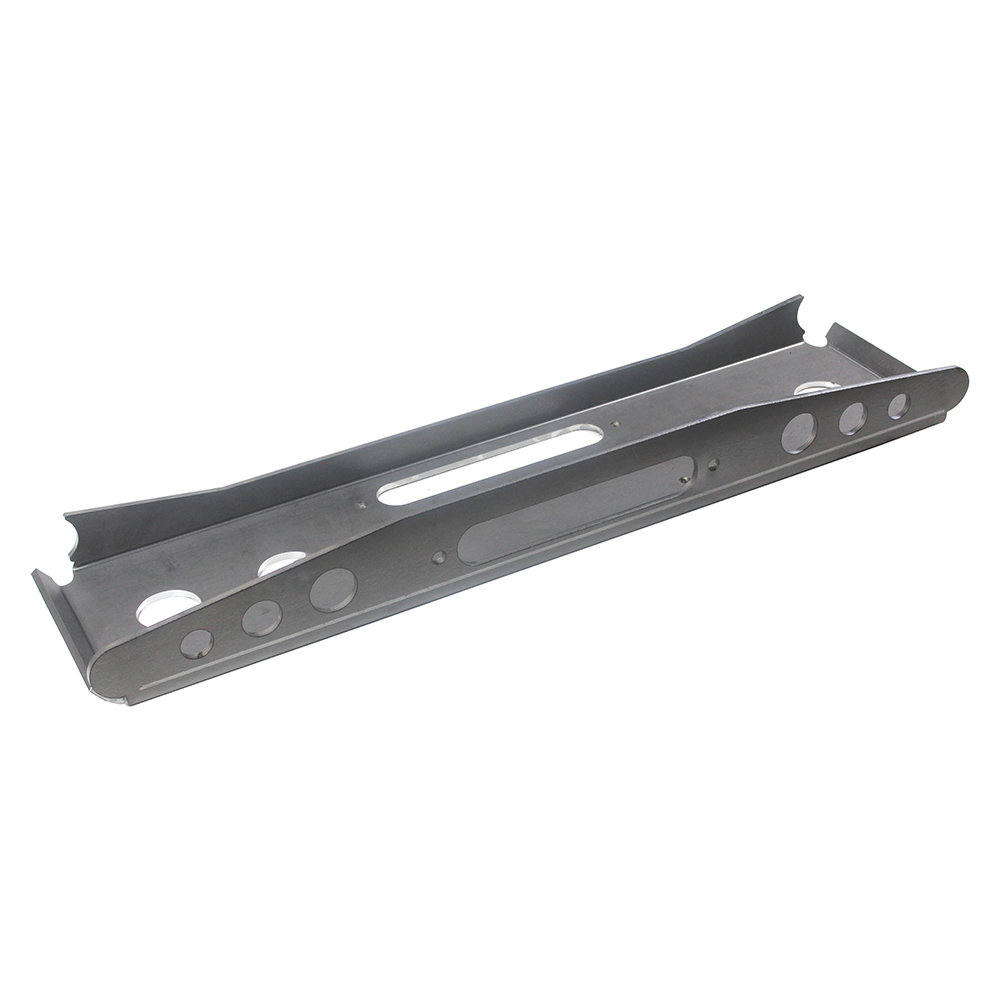

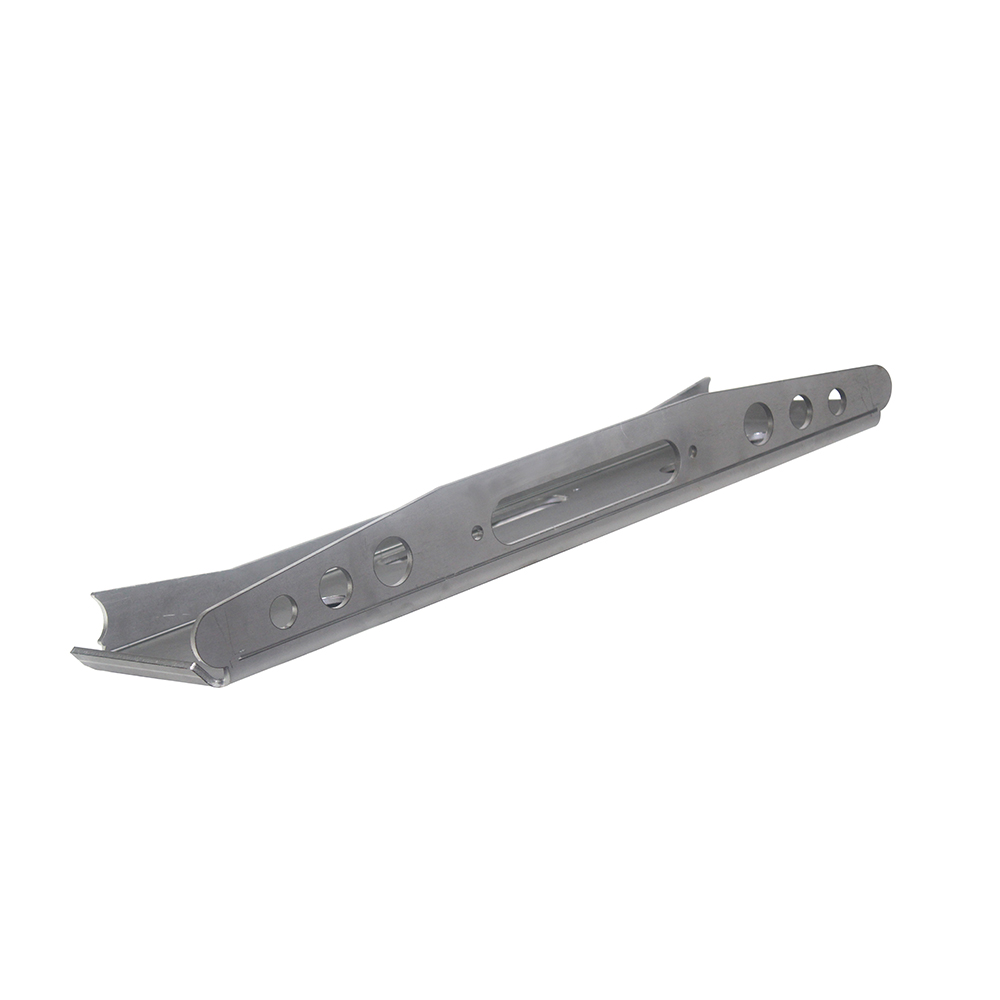

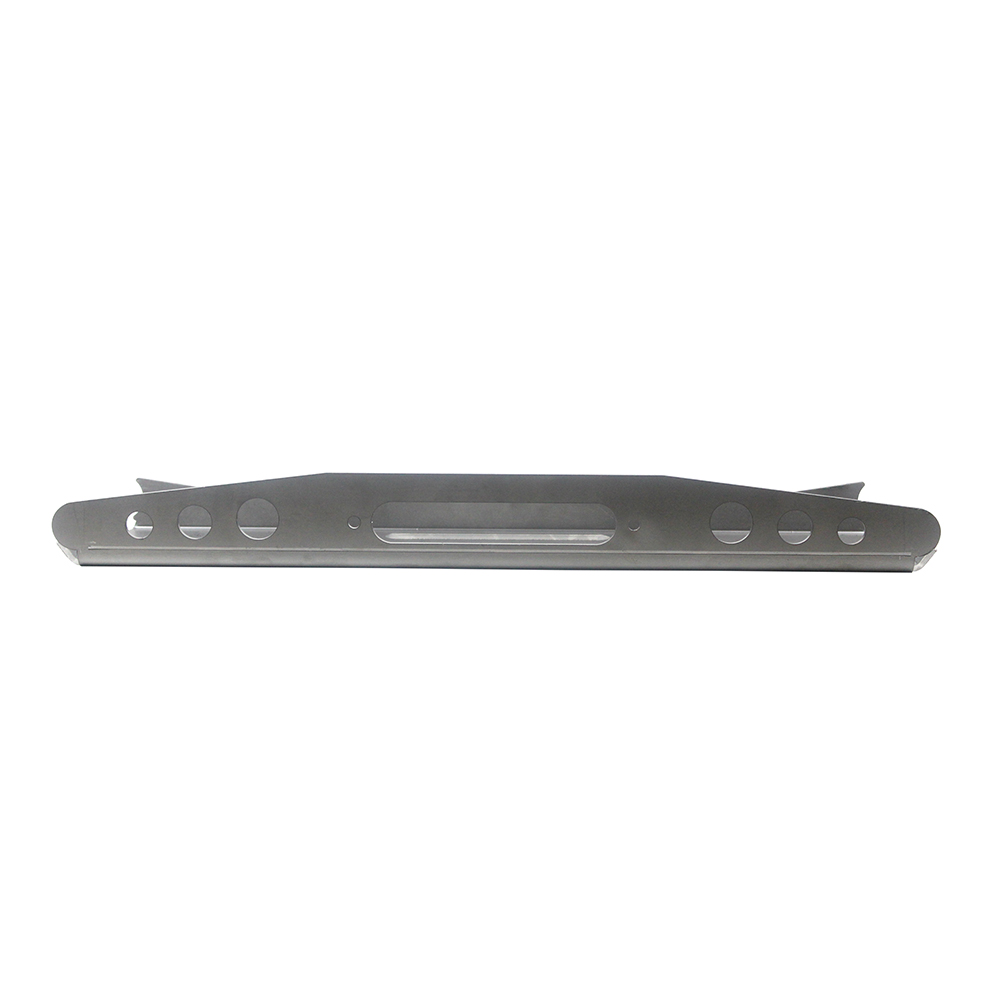

Motobilt is your source for products to build your offroad tube chassis. The Motobilt Universal Winch Mount tray for tube chassis was designed to make fabricating your tube chassis easier. The winch tray is designed for 1.75 inch OD round tubing to fit into it. The fabricator can modify the winch mount to work with 2.0 inch OD round tubing.

The tube chassis winch mount is designed to fit over tube chassis frame rails measuring 30.0 inch on center. The winch mount measures 8 inch from front to back.The winch tray features a bottom opening to be used to њsuck down your front suspension on steep climbs.

The chassis winch mount tray is laser cut from 0.25 inch steel plate and formed on our CNC press brake and ships bare steel ready for you to weld into your chassis.

Details:

• Sold As Each
• Finish Bare
• Material Steel
• Thickness 0.25 inch
• Cut CNC Laser Cut
• Formed CNC Formed
• Size 33.0 inch x 8.0 inch
