All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 Manifolds.

Install Time:

4 Hours

Warranty:

Parts

• 12-Months
• 12,000 Miles

Note:
Not for sale on licensed California vehicles
Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake

Emissions:

This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)

Features:

• BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
• The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
• BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust Manifolds
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

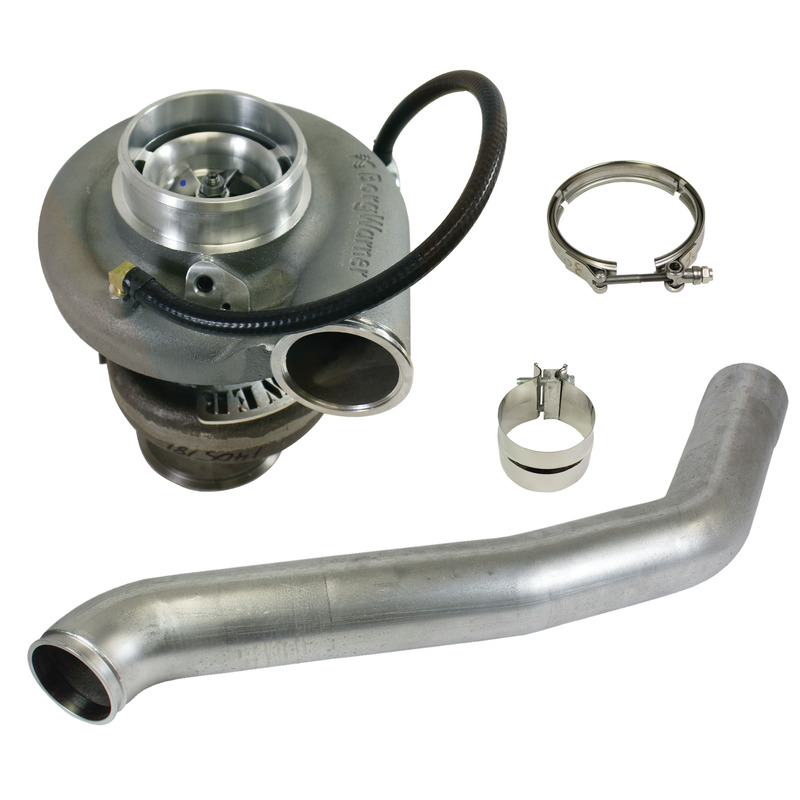

• Kit comes with downpipe, V-band clamp, band clamp
• Comp Wheel: 63mm 2.48in
• Turbine Wheel: 76mm 2.99in
• A/R Ratio: 0.80
• Flow: 79 Lb/min
• Approximate rated 550hp (depending on truck configuration)
