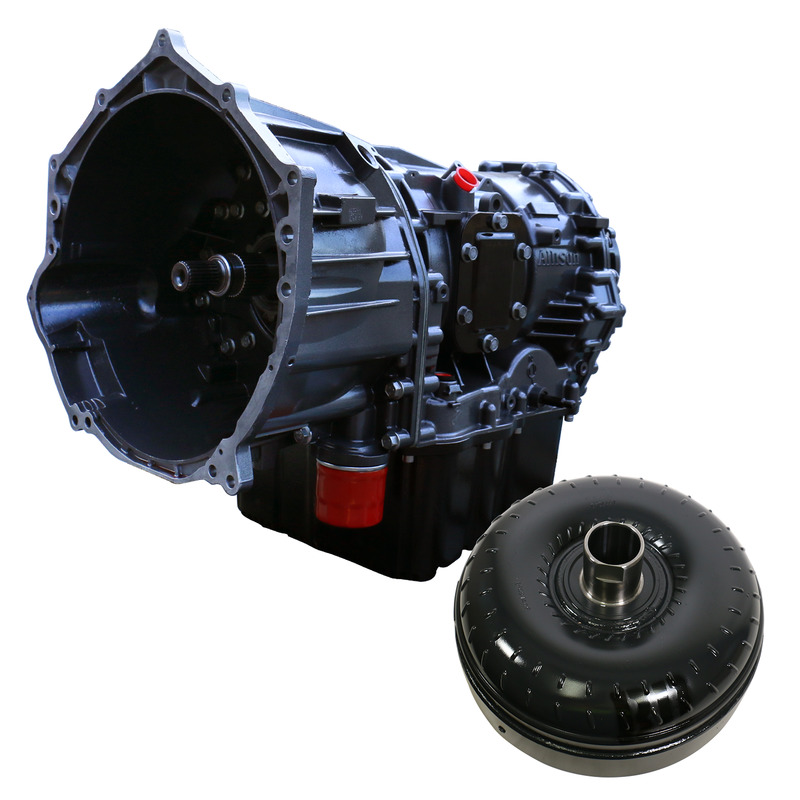

When you purchase a BD Tranmission and Torque Converter Package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every Tranmission comes with BD's own Heavy Duty pan that adds extra fluid capacity.

For towing, street or track, when it comes to a dependable Tranmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Install Time:

• 9 Hours

Warranty:

Parts

36-Months
150,000 Miles

Labor

12-Months
24,000 miles

Note:

No Race abuse covered

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• Tranmission
• Increase the durability of your drivetrain
• BD Aluminum HD deep Tranmission pan, increases oil capacity by 3.5qt
• Revised oil circuits
• New convertor lock up valve to boost lock-up pressures
• New A and B trim valves deliver full line pressure to the clutches
• High energy frictions
• Increased clutch count
• Clutch Count: C1 8 clutches (14 percent increase over stock)
• Clutch Count: C2 7 clutches (17 percent increase over stock)
• Clutch Count: C3 7 clutches (75 percent increase over stock)
• Clutch Count: C4 7 clutches (17 percent increase over stock)
• Clutch Count: C5 7 clutches (17 percent increase over stock)
• Each Tranmission is dyno tested
• Billet Input Shaft to take the snap from rapid throttle and high horsepower
• Torque Converter
• Triple Disc
• Enhanced Stall - Street/Towing applications
• HD springs absorb shock of engagement
• Stamp forged 1-piece cover
• Eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design
• Engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact decreases wear and chatter
• Thrust bearings - not plastic thrust washers
• Riveted piston ensures alignment and eliminates vibration or embrittlement from welding
• Cast stator designs maximizes torque
• New sprag components ensure long term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12lbs compared to competitors
